Forms #

In this lab, you’ll explore how to receive and save data on a web app through a form.

[0] Set up #

💻 Let's begin by starting the Colorama app in a Terminal window.

cd ~/desktop/making-with-code/unit05_webapps/lab_flask_colorama_yourgithubusername

💻 Open the directory in VSCode before starting the app.

code .

💻 Enter the Poetry Shell and start the app

poetry shell
python app.py

[1] Creating a new color with a form #

Now we’re going to extend the app to let users create their own colors. For this we use wtfforms and flask-wtf libraries.

💻 Open forms.py and add the following class

1
2
3
4
5
6
7
class ColorForm(FlaskForm):
    name = StringField('Color Name',validators=[DataRequired()])
    red = IntegerRangeField('Red Value', validators=[NumberRange(min=0, max=100)], default=0)
    green = IntegerRangeField('Green Value', validators=[NumberRange(min=0, max=100)], default=0)
    blue = IntegerRangeField('Blue Value', validators=[NumberRange(min=0, max=100)],  default=0)

    submit = SubmitField('Submit')

ColorForm sets up a form that defines which fields are necessary and what data type the field should accept. We use wtfforms and flask-wtf to easily manage things like validators and default values.

💻 Open app.py and add the following function

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

@app.route("/new", methods=['GET', 'POST'])
def color_new():
    form = ColorForm()

    if request.method == 'POST':
        if form.validate_on_submit():
            data = form.data
            new_color(data)

            return redirect(url_for('color_all'))

    return render_template('color_form.html', form=form, heading="Add a new color!")

color_new(), creates an empty NewColorForm (e.g. the name isn’t filled in and the colors aren’t set) and gives it to the template, which renders a response. The user sees a page with sliders and a text field to name the color.
When the user submits the form (this is a POST request because it’s making a change; all the previous requests have been GET requests), color_new() again receives the request. This time, since it’s a POST with form data (name, color values), it creates a ColorForm, checks to make sure the data is valid, and if so, creates a Color, saves it to the database, and then sends a redirect response telling the user to go to /colors.
heading="Add a new color!" is helpful so we can use the same form for multiple use cases, while being able to customize the heading text

💻 Now go to /new and add a few color. Then, go to the /all page to view your newly added color with all the other colors in the database.

💻 Currently, you are restricted to a specific range of RGB values -Change the form so you can add an integer from 0-255 for each RGB value.

✅ CHECKPOINT:
Before moving on, be sure you understand the following. If you do not, please ask a teacher.
What is the purpose of the for loop in the templates/color_form.html template file?
Why is DataRequired() on the name but not the red, green, or blue, in `forms.py?

[2] Modifying a color with a Form #

We are going to allow users to update the color if they want to tweak it. For this, we can use the exactly same form!

💻 In app.py and add the following incomplete function

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
@app.route("/edit/<int:color_id>", methods=['GET', 'POST'])
def color_edit(color_id):
    color = get_one_color(color_id)

    form = ColorForm(data=color)

    if request.method == 'POST':
        if form.validate_on_submit():
            data = form.data

            # 💻 finish the function


    return render_template('color_form.html', form=form)

💻 Now go to /edit/1, and make edits. Try changing the 1 to other numbers. Which numbers work and which numbers do not?

The form loads and the sliders work, however when submitting the form nothing happens.

💻 Finish the function color_edit() to:

update the color with the form data
redirect the user to the detail page

Redirect Hint ↕

For the redirect, you will need to call it with a parameter

return redirect(url_for('function_name', parameter_name = value))

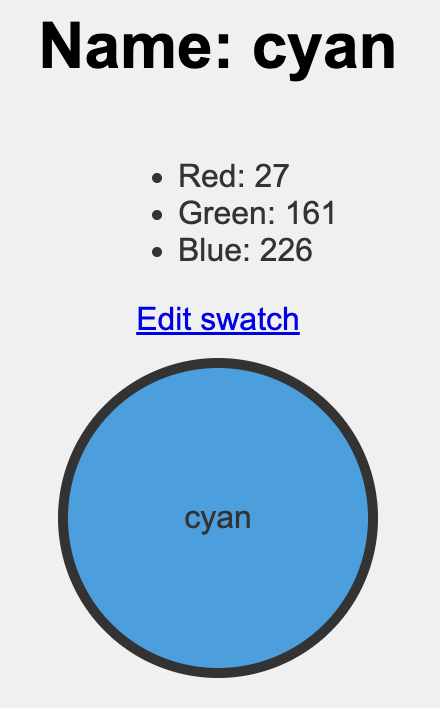

💻 Add a link on the color detail template that directs you to its edit page.

✅ CHECKPOINT:
Before moving on, be sure you understand the following. If you do not, please ask a teacher.
How is the form pre-populated with the color’s data?
When this form submitted via a POST request, it updates an existing color. How is this different than creating a new color?

[3] Filtering Form #

Forms can be useful to modify the database information, but they can also be useful to access or filter the database.

💻 In forms.py, add this FilterForm. It is quite a simple form that uses a SearchField.

class FilterForm(FlaskForm):
    name = SearchField('Color Name',validators=[DataRequired()])
    submit = SubmitField('Submit')

💻 In app.py let’s edit our color_all() function. Notice how we added the methods to the @app.route decorator. This is because routes that include a form must GET and POST data.

@app.route("/all", methods=['GET', 'POST'])
def color_all():

    form = FilterForm()

    if request.method == 'POST':
        if form.validate_on_submit():
            search_name = form.data['name']

            # 💻 finish the function


    all_colors = get_all_colors('name')

    return render_template(
            'color_all.html',
            all_colors=all_colors,
            form = form)

💻 Finish the function color_all() to:

query the database by the name field using a function in helpers.py
render the template with the queried colors

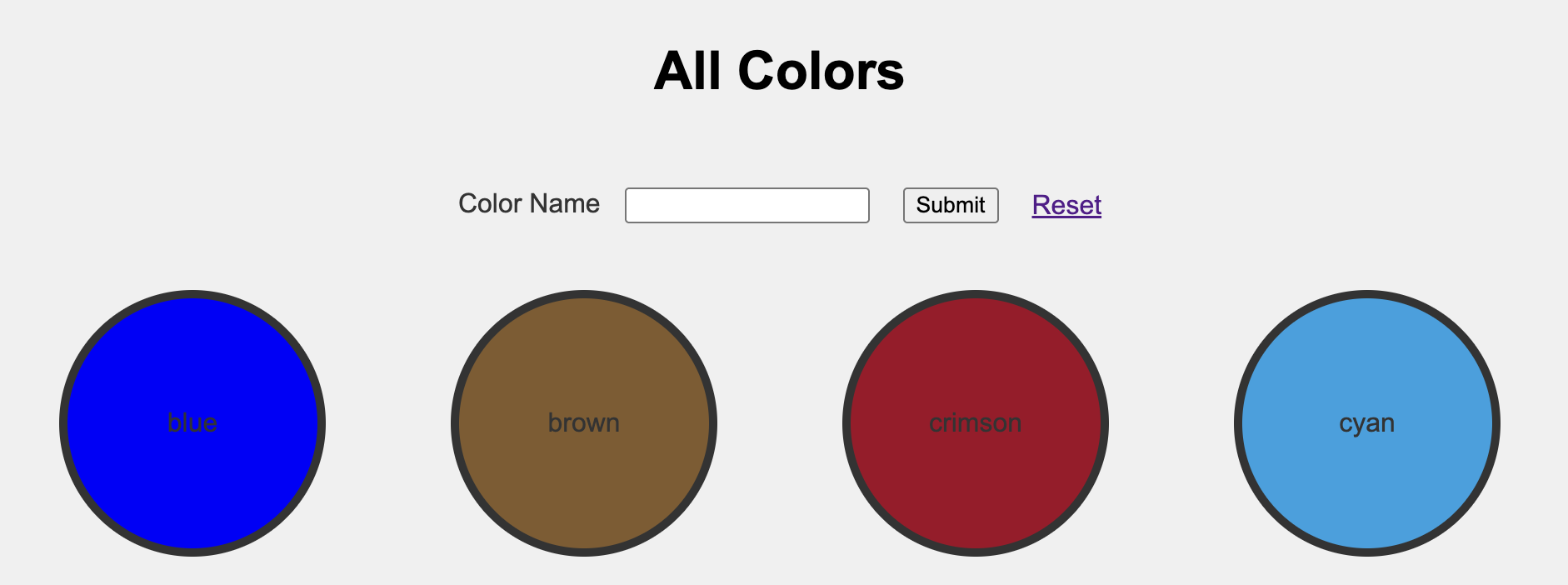

💻 Then, update the template in templates/color_all.html to include the form. Is there an existing code block you can copy, paste, and edit?

Search Bar Format Hint ↕

Take a look at the static/style.css file. Is there any class we can use?
Once you find the name of the class, make sure to add it in the same bracket as <form method="POST”>

💻 Add a link in the template to reset the search to see all of the colors What should you link to?

✅ CHECKPOINT:
Before moving on, be sure you understand the following. If you do not, please ask a teacher.
How to create new forms for querying
How to access data from a submitted form
How to ‘reset’ a query using HTML links

[3] Deliverables #

⚡✨ Once you've successfully completed the lab:
💻 Push your code to Github.
git status
git add -A
git status
git commit -m “describe your code and your process here”
be sure to customize this message, do not copy and paste this line
git push

[4] Extensions #

Generate a new random color #

Implement a new feature where the user can click a button on the /new endpoint that would generate a random color (load the /new page with pre-populated rgb values).

You will need to look at how to use GET request query parameters with Flask

Challenge: do this by only editing the /new route in app.py and color_form.html.

Add more search features on `/all` route #

Add more ways the user can query the database in /all.

Ideas:

Search with minimum/maximum RGB values
Search for a range of RGB values
